Quantity:
Item: 10FO.30X10.001.01 - Oval vacuum cup, 30mm x 10mm. NBR
| |
Item#: 10FO.30X10.001.01
Price: £13.40 ea.
|
Oval vacuum cup, 30mm x 10mm. NBR
General Specifications
Style: Oval
Cleats: No
Material: NBR
Thread Size: None
Outside Diameter1: 30.0mm
Outside Diameter2: 10mm
Weight(lbs): .0035
Color: Black
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 10FO.30X10.001.01
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
0.29 lbs. |
0.14 lbs. |
| 18"Hg |
1.31 lbs. |
0.65 lbs. |
| 27"Hg |
1.97 lbs. |
0.98 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: NO
 Recommended replacement for: OC10-30-NBR, 30.030010.020.01, VPO 1030 NBR, OC10-30-NBR, SGO 30x10 NBR-60 N022, 10.01.05.00152, 132.30x10.018.1, OV10-30, OV10-30N |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| NBR |
Good |
Good |
Excellent |
-40 to 266 °F (-40 to +130 °C) |
Video of Product in Action
No Videos Available for: 10FO.30X10.001.01

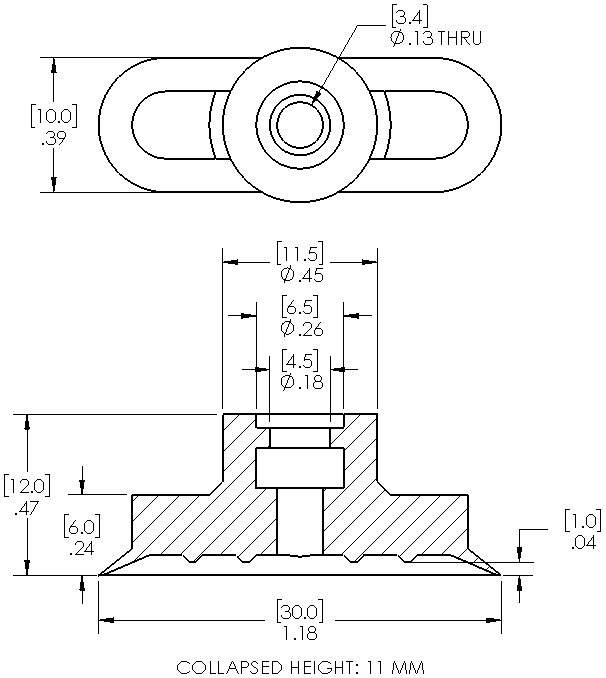

Dimensional drawing for Item: 10FO.30X10.001.01
Click on the image to enlarge
Parts and accessories for Suction Cup: 10FO.30X10.001.01
Fitting Image for 130.094 |
General Specifications
Material: Aluminum
Weight: .0025(lbs)
Dimensions: M5 male
Price: £4.37 each
Description: M5 male fitting
Add to Cart
|
Dimensional Fitting Drawing for 130.094 |
|
|---|
Fitting Image for 130.095 |
General Specifications
Material: Aluminum
Weight: .0095(lbs)
Dimensions: G1/8" male
Price: £4.46 each
Description: G1/8 male fitting
Add to Cart
|
Dimensional Fitting Drawing for 130.095 |
|
|---|
