Quantity:
Item: 10FF.004.001.16-M3 - 4mm flat conductive Chloroprene foam suction cup ... (Full Description below)
| |
Item#: 10FF.004.001.16-M3
Price: £5.93 ea.
|
4mm flat conductive Chloroprene foam suction cup with M3 male fitting
General Specifications
Style: Foam
Cleats: No
Material: Chloroprene
Thread Size: M3 male
Outside Diameter: 4.0mm
Weight(lbs): .0039
Color: Black
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 10FF.004.001.16-M3
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
0.02 lbs. |
0.01 lbs. |
| 18"Hg |
0.07 lbs. |
0.03 lbs. |
| 27"Hg |
0.10 lbs. |
0.05 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| Chloroprene |
Good |
Good |
Excellent |
-40 to 266 °F (-40 to +130 °C) |
Video of Product in Action
No Videos Available for: 10FF.004.001.16-M3

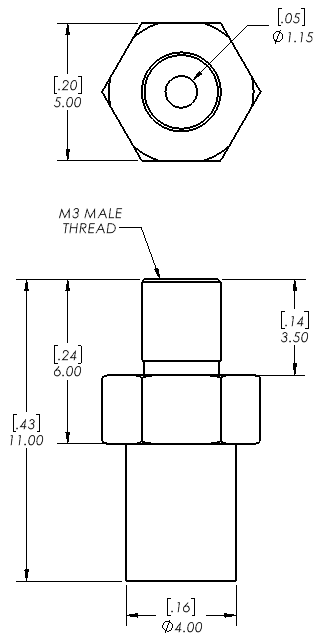

Dimensional drawing for Item: 10FF.004.001.16-M3
Click on the image to enlarge
Parts and accessories for Suction Cup: 10FF.004.001.16-M3
No parts or accessories related to this item were found.
