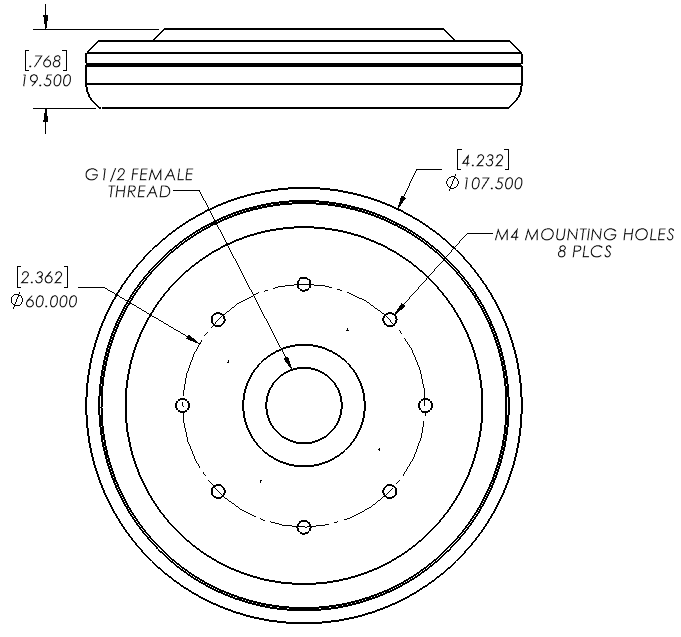

Home > Products > Suction Cups > 10FF.110.001.15 Product DetailsDimensional DrawingParts & Accessories Quantity: Item: 10FF.110.001.15 - 107mm flat EPDM foam vacuum cup with G1/2 female ... (Full Description below) Item#: 10FF.110.001.15 Price: £94.92 ea. 107mm flat EPDM foam vacuum cup with G1/2 female fitting General Specifications Style: Foam Cleats: No Material: EPDM Thread Size: 1/2" female Outside Diameter: 107.0mm Weight(lbs): .5190 Color: Black Lifting Capacity: See Chart                                                                                                                                  [X] Close Lifting Capacity for Item 10FF.110.001.15    Level of Vacuum (inHg) Horizontal Vertical 6"Hg 16.72 lbs. 8.36 lbs. 18"Hg 50.17 lbs. 25.08 lbs. 27"Hg 75.26 lbs. 37.63 lbs. ***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting. Includes fitting?: YES   Recommended replacement for: P100.50.10UA, A-3350047, 33.50.047 Material Specifications Video of Product in Action No Videos Available for: 10FF.110.001.15 Dimensional drawing for Item: 10FF.110.001.15                                Click on the image to enlarge Parts and accessories for Suction Cup: 10FF.110.001.15                                No parts or accessories related to this item were found.

---
