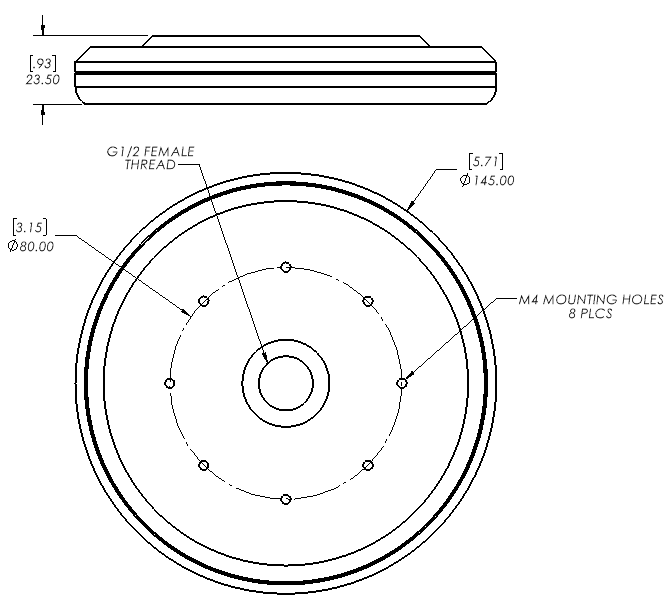

Home > Products > Suction Cups > 10FF.150.001.15 Product DetailsDimensional DrawingParts & Accessories Quantity: Item: 10FF.150.001.15 - 145mm Flat EPDM foam vacuum cup with G1/2 female ... (Full Description below) Item#: 10FF.150.001.15 Price: £137.76 ea. 145mm Flat EPDM foam vacuum cup with G1/2 female fitting General Specifications Style: Foam Cleats: No Material: EPDM Thread Size: 1/2" female Outside Diameter: 145.0mm Weight(lbs): 1.279 Color: Black Lifting Capacity: See Chart                                                                                                                                  [X] Close Lifting Capacity for Item 10FF.150.001.15    Level of Vacuum (inHg) Horizontal Vertical 6"Hg 30.71 lbs. 15.35 lbs. 18"Hg 92.14 lbs. 46.07 lbs. 27"Hg 138.21 lbs. 69.10 lbs. ***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting. Includes fitting?: YES Material Specifications Video of Product in Action No Videos Available for: 10FF.150.001.15 Dimensional drawing for Item: 10FF.150.001.15                                Click on the image to enlarge Parts and accessories for Suction Cup: 10FF.150.001.15                                No parts or accessories related to this item were found.

---
