Quantity:
Item: 35B.034.001.02-G18F - 34mm 3.5 bellows modular bag handling suction cup... (Full Description below)
| |
Item#: 35B.034.001.02-G18F
Price: £20.54 ea.
|
34mm 3.5 bellows modular bag handling suction cup with G1/8 female fitting. Silicone lip.
General Specifications
Style: Bellows
Cleats: Yes
Material: Silicone
Thread Size: 1/8" female
Bellows: 3.5
Outside Diameter: 34.0mm
Weight(lbs): .0032
Color: Red
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 35B.034.001.02-G18F
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
1.68 lbs. |
0.84 lbs. |
| 18"Hg |
5.06 lbs. |
2.53 lbs. |
| 27"Hg |
7.59 lbs. |
3.79 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| Silicone |
Good |
Good |
Excellent |
-94 to 392 °F (-70 to 200 °C) |
Video of Product in Action
No Videos Available for: 35B.034.001.02-G18F

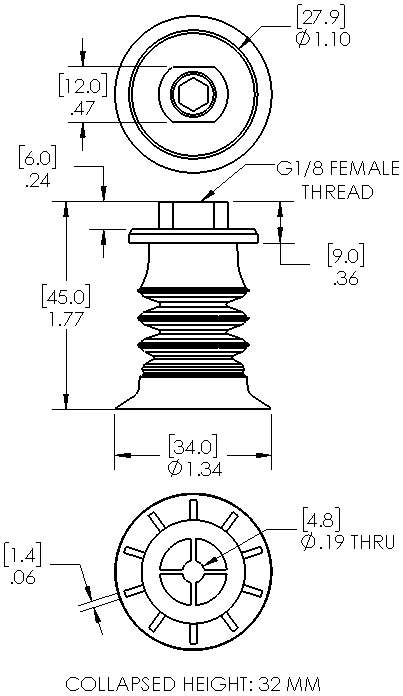

Dimensional drawing for Item: 35B.034.001.02-G18F
Click on the image to enlarge
Parts and accessories for Suction Cup: 35B.034.001.02-G18F
Fitting Image for 401.004 |
General Specifications
Material: Aluminum
Weight: .0190(lbs)
Dimensions: G1/8" female
Description: G1/8 Female flange fitting
*This fitting is included with the cup(35B.034.001.02-G18F)
|
Dimensional Fitting Drawing for 401.004 |
|
|---|
