Quantity:
Item: PA06-SIT-M5 - 6mm flat FDA Silicone suction cup with M5 male fi... (Full Description below)
| |
Item#: PA06-SIT-M5
Price: £5.92 ea.
|
6mm flat FDA Silicone suction cup with M5 male fitting
General Specifications
Style: Flat
Cleats: No
Material: Silicone
Thread Size: M5 male
Outside Diameter: 6.0mm
Weight(lbs): .0022
Color: Translucent
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item PA06-SIT-M5
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
0.05 lbs. |
0.02 lbs. |
| 18"Hg |
0.15 lbs. |
0.07 lbs. |
| 27"Hg |
0.23 lbs. |
0.11 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES
 Recommended replacement for: PFTM-6A-SI-M5, PFYN 6 SI-55 M5-AG, 10.01.01.00152 |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| Silicone |
Good |
Good |
Excellent |
-94 to 392 °F (-70 to 200 °C) |
Video of Product in Action
No Videos Available for: PA06-SIT-M5
Dimensional drawing for Item: PA06-SIT-M5
Click on the image to enlarge
Parts and accessories for Suction Cup: PA06-SIT-M5

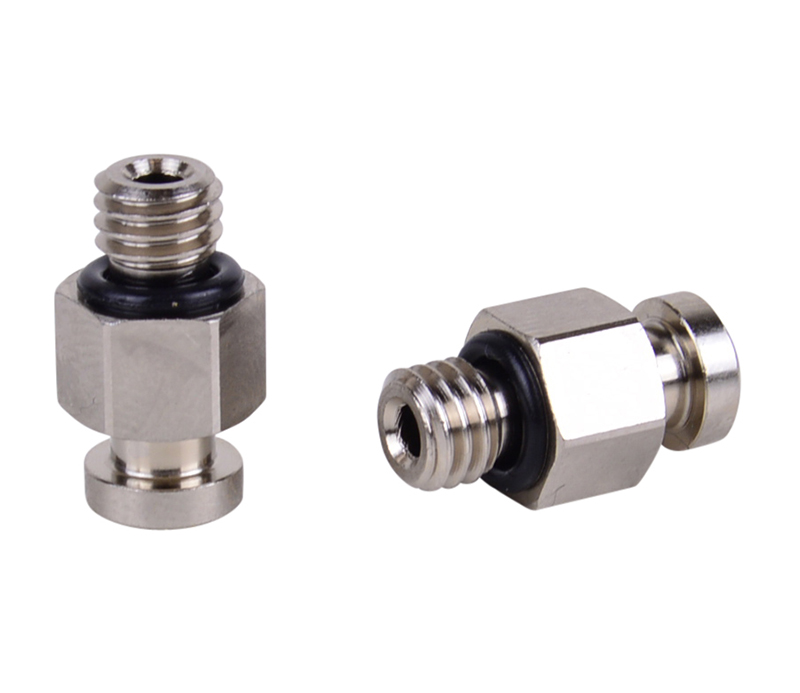

Fitting Image for 400.005 |
General Specifications
Material: Aluminum
Weight: .0005(lbs)
Dimensions: M5 male
Description: M5 flange fitting
*This fitting is included with the cup(PA06-SIT-M5)
|
Dimensional Fitting Drawing for 400.005 |
|
|---|
Fitting Image for 130.005 |
General Specifications
Material: Aluminum
Weight: .0015(lbs)
Dimensions: M5 female
Description: M5 female fitting for PFG, PJG 5-15mm cups
|
Dimensional Fitting Drawing for 130.005 |
|
|---|
