Quantity:
Item: SB25-NBR-G18M - 23.5mm single bellows NBR suction cup with G1/8 m... (Full Description below)
| |
Item#: SB25-NBR-G18M
Price: £4.90 ea.
|

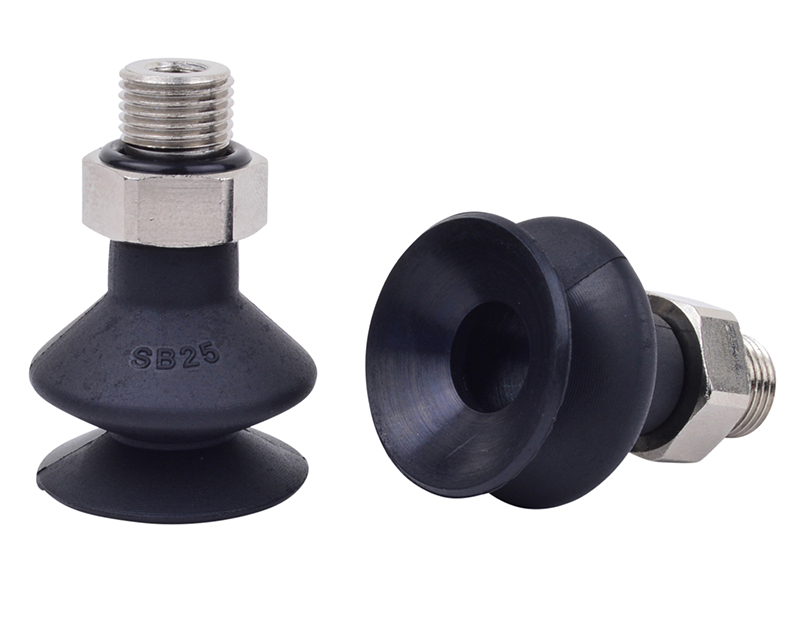

23.5mm single bellows NBR suction cup with G1/8 male fitting
General Specifications
Style: Bellows
Cleats: No
Material: NBR
Thread Size: 1/8" male
Bellows: 1.5
Outside Diameter: 23.5mm
Weight(lbs): 0.0132
Color: Black
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item SB25-NBR-G18M
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
0.80 lbs. |
0.40 lbs. |
| 18"Hg |
2.42 lbs. |
1.21 lbs. |
| 27"Hg |
3.63 lbs. |
1.81 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES
 Recommended replacement for: FSGA 25 NBR-55 G1/8-AG, 10.01.06.00399 , VSA25NBRIM18C |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| NBR |
Good |
Good |
Excellent |
-40 to 266 °F (-40 to +130 °C) |
Video of Product in Action
Click Video for Product: SB25-NBR-G18M
Dimensional drawing for Item: SB25-NBR-G18M
Click on the image to enlarge
Parts and accessories for Suction Cup: SB25-NBR-G18M

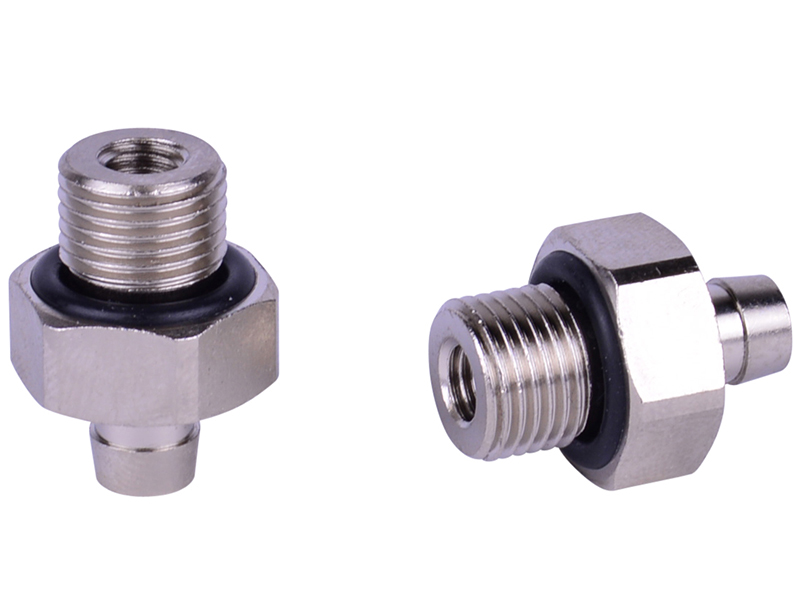

Fitting Image for 401.002 |
General Specifications
Material: Aluminum
Weight: .0085(lbs)
Dimensions: G1/8" male
Description: G1/8 male barb fitting
*This fitting is included with the cup(SB25-NBR-G18M)
|
Dimensional Fitting Drawing for 401.002 |
|
|---|
