Item: PU6-SIT - 7mm flat FDA Silicone suction cup
| |
Item#: PU6-SIT
Price: £2.36 ea.
|
7mm flat FDA Silicone suction cup
General Specifications
Style: Flat
Cleats: No
Material: Silicone
Thread Size: None
Outside Diameter: 7.0mm
Weight(lbs): 0.0002
Color: Translucent
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item PU6-SIT
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
0.07 lbs. |
0.03 lbs. |
| 18"Hg |
0.21 lbs. |
0.10 lbs. |
| 27"Hg |
0.32 lbs. |
0.16 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: NO
 Recommended replacement for: VPU6SI, VU6-WS, U6-SIT, A-3150115S, 102.007.091.2, 102.007.091.2, GSV U6 20, 5094 , GSV FOS 7, 674 , VU6-S, VCR-U6P-S, 10.007.035.02, 010707S |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| Silicone |
Good |
Good |
Excellent |
-94 to 392 °F (-70 to 200 °C) |
Video of Product in Action
No Videos Available for: PU6-SIT
Dimensional drawing for Item: PU6-SIT
Click on the image to enlarge
Parts and accessories for Suction Cup: PU6-SIT

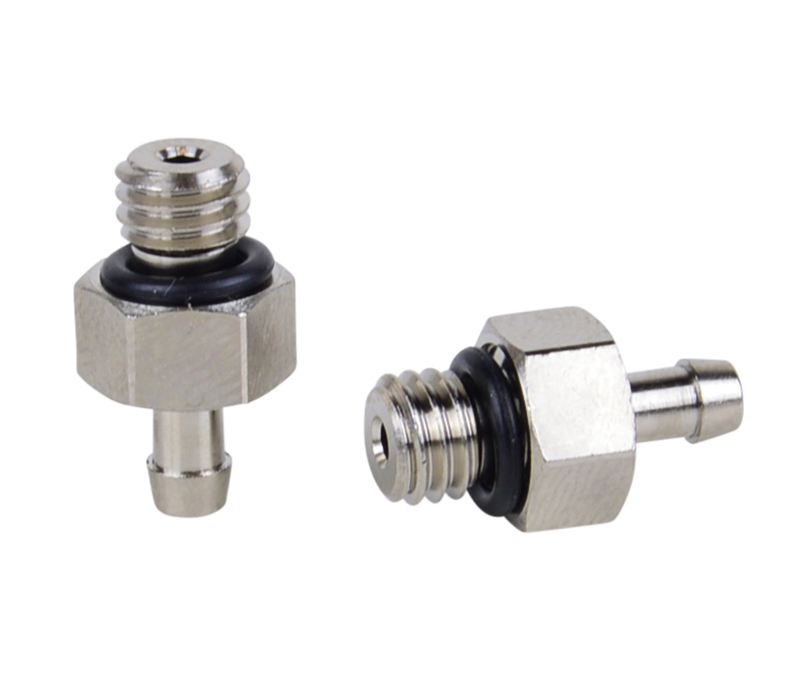

Fitting Image for 400.006 |
General Specifications
Material: Aluminum
Weight: .0010(lbs)
Dimensions: M5 male
Price: £1.84 each
Description: M5 Male Barb Fitting
Add to Cart
|
Dimensional Fitting Drawing for 400.006 |
|
|---|
