Quantity:
Item: VOCB25x15-SIT - 15mm x 25mm oval bellows FDA Silicone suction cup
| |
Item#: VOCB25x15-SIT
Price: £11.94 ea.
|

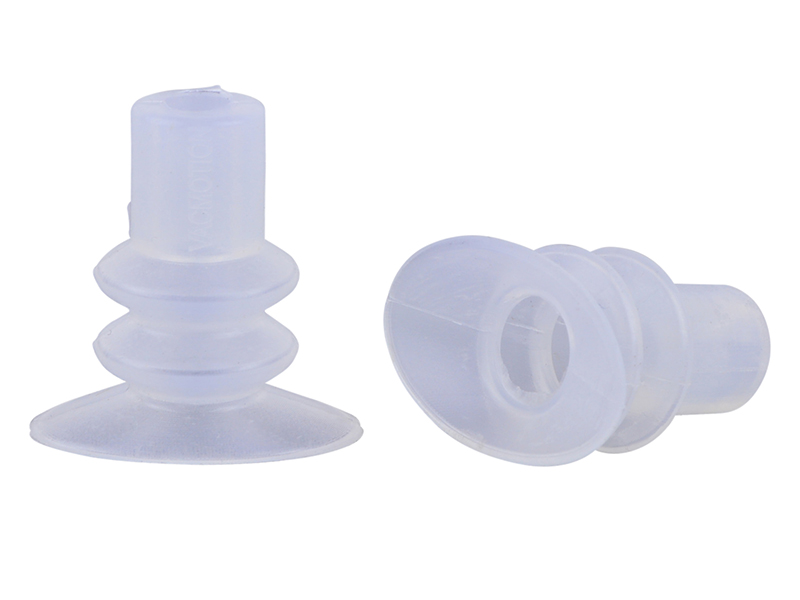

15mm x 25mm oval bellows FDA Silicone suction cup
General Specifications
Style: Oval
Cleats: No
Material: Silicone
Thread Size: None
Outside Diameter1: 25.0mm
Outside Diameter2: 15mm
Weight(lbs): 0.00595
Color: Translucent
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item VOCB25x15-SIT
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
0.36 lbs. |
0.18 lbs. |
| 18"Hg |
1.64 lbs. |
0.82 lbs. |
| 27"Hg |
2.46 lbs. |
1.23 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: NO |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| Silicone |
Good |
Good |
Excellent |
-94 to 392 °F (-70 to 200 °C) |
Video of Product in Action
Click Video for Product: VOCB25x15-SIT
Dimensional drawing for Item: VOCB25x15-SIT
Click on the image to enlarge
Parts and accessories for Suction Cup: VOCB25x15-SIT
No parts or accessories related to this item were found.
