Quantity:
Item: PF15-NBR - 16.5mm flat NBR suction cup with cleats
| |
Item#: PF15-NBR
Price: £1.88 ea.
|
16.5mm flat NBR suction cup with cleats
General Specifications
Style: Flat
Cleats: Yes
Material: NBR
Thread Size: None
Outside Diameter: 16.5mm
Weight(lbs): 0.0022
Color: Black
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item PF15-NBR
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
0.39 lbs. |
0.19 lbs. |
| 18"Hg |
1.19 lbs. |
0.59 lbs. |
| 27"Hg |
1.78 lbs. |
0.89 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: NO
 Recommended replacement for: VF15-N, F15.10, VPF15NBR, F15-NEO, A-3150125, 3150125, 104.016.003.9, XP-F15N, GSV F15 10, 5124 , GSV FON 16R, 1121 , VFF15N, VCR-F15P-C, 10.016.039.01 |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| NBR |
Good |
Good |
Excellent |
-40 to 266 °F (-40 to +130 °C) |
Video of Product in Action
No Videos Available for: PF15-NBR
Dimensional drawing for Item: PF15-NBR
Click on the image to enlarge
Parts and accessories for Suction Cup: PF15-NBR

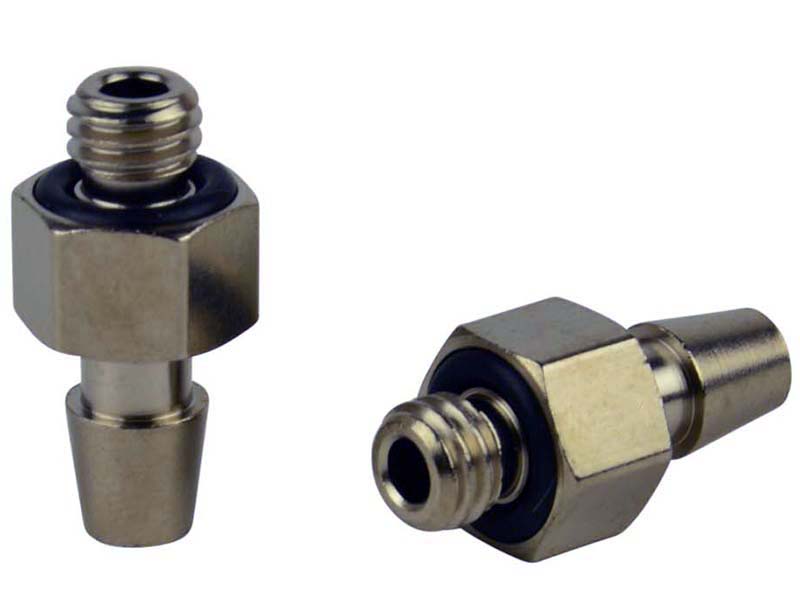

Fitting Image for 130.134-2 |
General Specifications
Material: Nickel Plated Brass
Weight: .0015(lbs)
Dimensions: M5 male
Price: £1.09 each
Description: M5 male barb fitting
Add to Cart
|
Dimensional Fitting Drawing for 130.134-2 |
|
|---|
