Quantity:
Item: PVF1.0-PE - Plastic vacuum filter 1 NPT thread, Polypropylene... (Full Description below)
| | Item#: PVF1.0-PE
Price: £51.08 ea.
|
Plastic vacuum filter 1 NPT thread, Polypropylene body, clear PA bowl, Buna-N gasket, 10 micron Polyethylene filter element.
General Specifications
Filter Type: Plastic housing
Thread Size: 1" FNPT
Filter Area In2: 29.5
Max Flow SCFM: 89.0
Weight(lbs): 0.938
 Recommended replacement for: PPSF1.0-X50, FLTP-1F |
|
|
|
Additional Information
No additional information
Plastic vacuum filter 1" FNPT
CAD files for this Product
N/A
Dimensional drawing for Item: PVF1.0-PE
Click on the image to enlarge
| Item#: SB-L-CN | Large Series Clear Nylon bowl (gasket sold separately) |
|
General Specifications
Product: Replacement Bowls
Material: Clear Nylon
Dimensions:
Weight lbs.(g): 0.426
Price: £12.91 each
Add to Cart
|
Dimensional Drawing for SB-L-CN |
|
|---|
| Item#: SG-L-B | Large Series Buna gasket - Black. Sold individually. |
|
General Specifications
Product: Replacement Gaskets
Material: Buna
Dimensions:
Weight lbs.(g): 0.007
Price: £0.79 each
Add to Cart
|
Dimensional Drawing for SG-L-B |
|
|---|

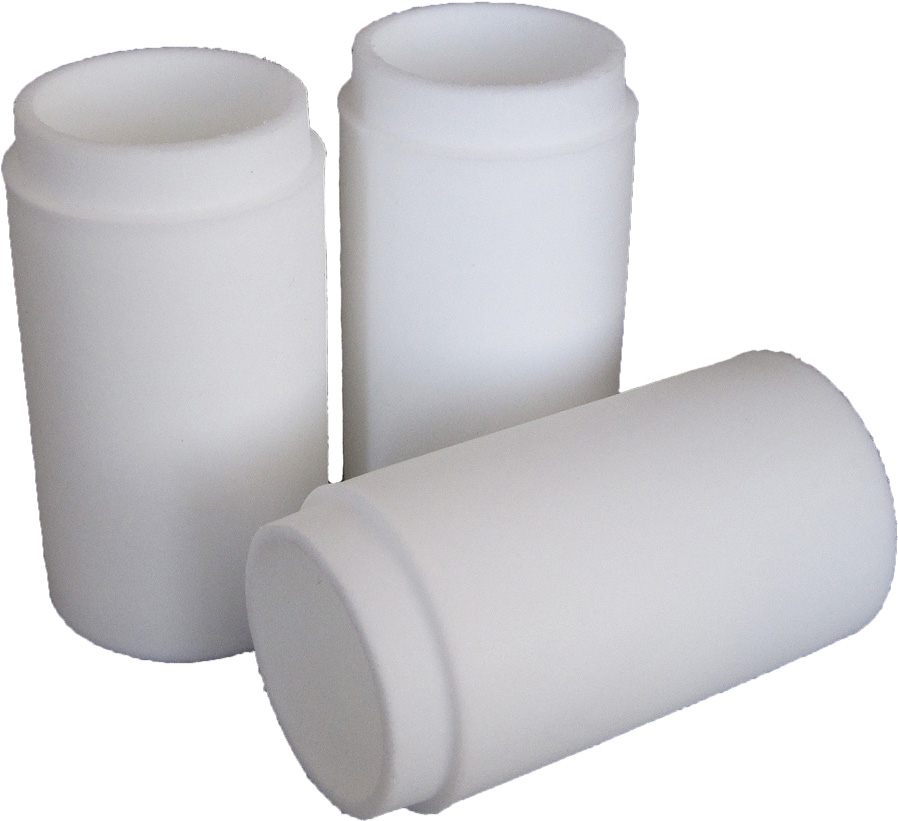

| Item#: PE10-3 | 10 micron porous polyethylene replacement filter element (package of 3 pcs.). For use with filter model: PVF1.0-PE and all 1 Large Series in line strainers |
|
General Specifications
Product: Filter Elements
Material: Polyethylene (PE)
Dimensions:
Weight lbs.(g): 0.350
Price: £34.65 each
Add to Cart
|

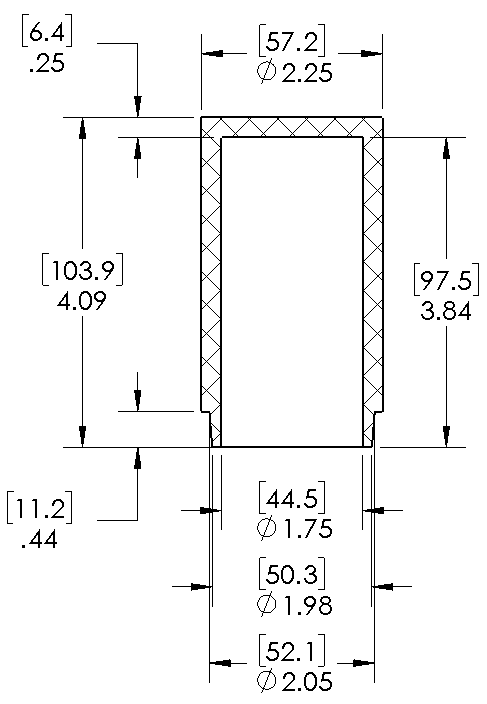

Dimensional Drawing for PE10-3 |
|
|---|
| Item#: FMB-10 | Mounting bracket for 1 inch Large Series female filters. Fits: PLS-L10 inline strainers. Fits PVF1.0 vacuum filters |
|
General Specifications
Product: Mounting Brackets
Material: Aluminum
Dimensions:
Weight lbs.(g): 0.178
Price: £8.31 each
Add to Cart
|
Dimensional Drawing for FMB-10 |
|
|---|
