Quantity:
Item: MSVG-68H - Multi-stage vacuum generator. 2.40 SCFM. 27.5 H... (Full Description below)
| |
Item#: MSVG-68H
Price: £96.25 ea.
|
Multi-stage vacuum generator. 2.40 SCFM. 27.5 Hg (includes 4x M4 top, flush mount screws)
General Specifications
Vacuum Flow(SCFM): 2.3
Vacuum Port: G3/8"
Supply Port: 6mm tube
Air Consumption: 1.06
Max Vac -inHg": 27.5
Weight(lbs)": .1460
|
|
|
|
Additional Information
No additional information available for this item
CAD files for this Product
N/A
| Supply Press (PSI) |
Max Vacuum "Hg |
0"Hg |
3"Hg |
6"Hg |
9"Hg |
12"Hg |
15"Hg |
18"Hg |
21"Hg |
24"Hg |
27"Hg |
| 72.5 |
27.5 |
2.33 |
1.41 |
1.20 |
0.85 |
0.51 |
0.33 |
0.24 |
0.17 |
0.08 |
0.00 |
| Supply Press (PSI) |
Max Vacuum "Hg |
3"Hg |
6"Hg |
9"Hg |
12"Hg |
15"Hg |
18"Hg |
21"Hg |
24"Hg |
27"Hg |
|
27.5 |
1.42 |
5.38 |
10.47 |
18.68 |
35.66 |
60.56 |
97.64 |
158.48 |
|
| Supply Press (Bar) |
Air Cons L/min |
Max Vacuum "Hg |
0 Kpa |
10 Kpa |
20 Kpa |
30 Kpa |
40 Kpa |
50 Kpa |
60 Kpa |
70 Kpa |
80 Kpa |
90 Kpa |
| 5 |
|
27.5 |
66 |
40 |
34 |
24 |
14.3 |
9.3 |
6.9 |
4.8 |
2.4 |
|
| Supply Press (Bar) |
Max Vacuum "Hg |
10 Kpa |
20 Kpa |
30 Kpa |
40 Kpa |
50 Kpa |
60 Kpa |
70 Kpa |
80 Kpa |
90 Kpa |
| 5 |
27.5 |
0.19 |
0.37 |
0.66 |
1.26 |
2.14 |
3.45 |
5.6 |
0.05 |
|
Dimensional drawing for Item: MSVG-68H
Click on the image to enlarge
Parts and accessories for Item: MSVG-68H
|

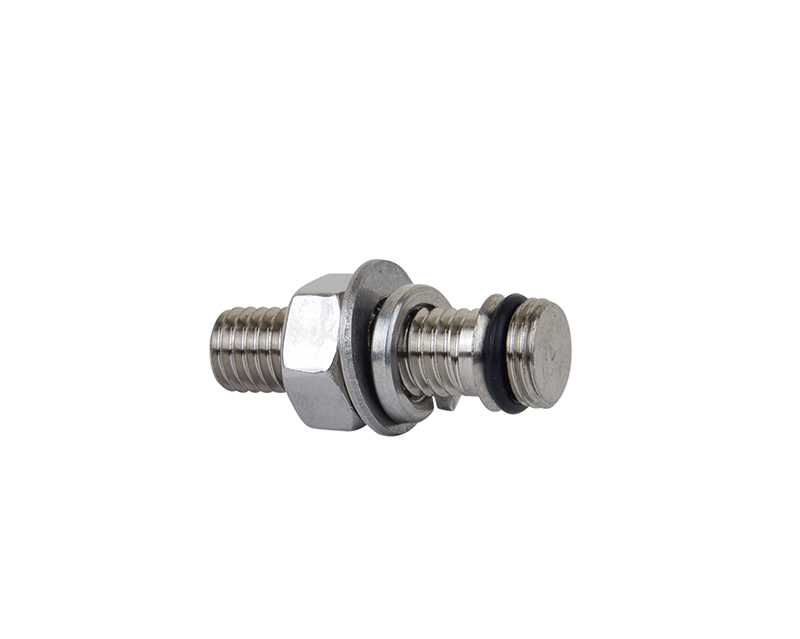

Description: MSVG mounting bracket M8 bolt type
General Specifications
Type: Brackets for Generators
Material: Steel
Price: £8.40 each
Add to Cart
|
Dimensional Fitting Drawing for GMB-E-M8 |
|
|---|
|

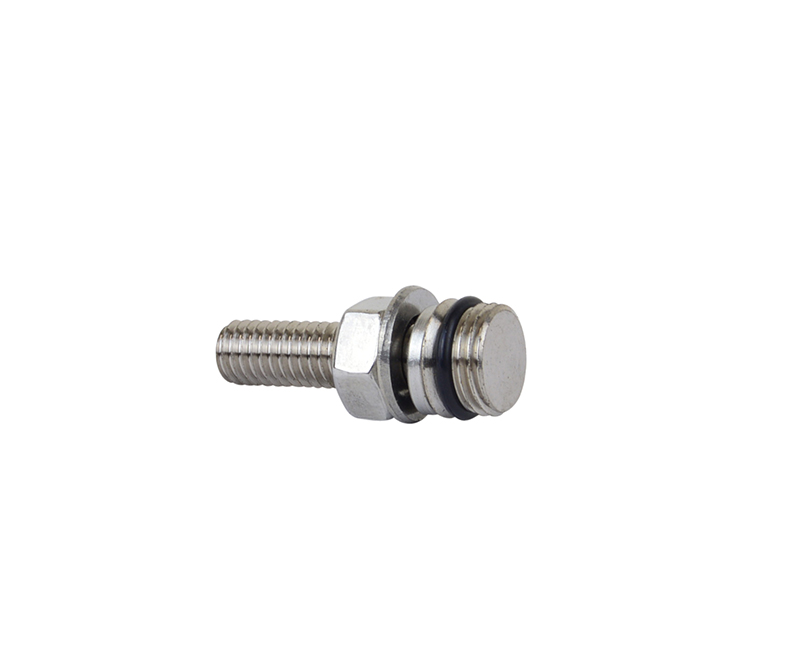

Description: MSVG mounting bracket M6 bolt type
General Specifications
Type: Brackets for Generators
Material: Steel
Price: £8.05 each
Add to Cart
|
Dimensional Fitting Drawing for GMB-D-M6 |
|
|---|
